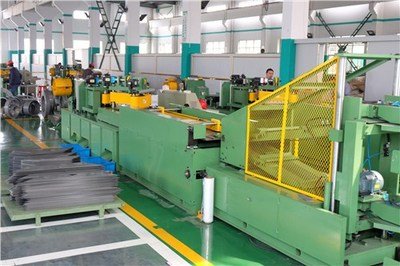

Transverse Cutting Line
Here’s the English translation of the provided content, optimized for technical and industrial readability:
High-Efficiency Production
Automated feeding, cutting, and stacking significantly boost productivity (e.g., dozens of cuts per minute).
Integrates with continuous production lines for a seamless workflow: coil → leveling → cross-cutting → finished products.
Versatile Adaptability
Handles diverse materials (cold/hot rolled steel, stainless steel, aluminum, copper strips, etc.) and thickness ranges (e.g., 0.1mm–6mm).
Supports multiple cutting modes (fixed-length, patterned, remnant optimization, etc.).
Smart Automation
Equipped with PLC or CNC control systems for preset parameters, fault diagnostics, and data logging.
Optional vision inspection or laser ranging for automatic error correction.
Material Waste Reduction
Optimized cutting paths maximize sheet utilization (e.g., dynamic knife positioning or multi-segment cutting).
Remnant recycling functionality minimizes scrap rates.
Stability & Durability
Heavy-duty mechanical design ensures long-term operational reliability.
Critical components (e.g., blades, rails) use wear-resistant materials to extend service life.
Safety & Eco-Friendliness
Safety guards (light curtains, emergency stops) ensure operator protection.
Low-noise design; some models include dust extraction systems.
Key Applications
Metalworking: Steel plates, stainless steel slitting.
New Energy: Lithium battery electrode sheets, photovoltaic backsheet cutting.
Packaging/Printing: Cardboard, plastic film transverse cutting.
Here's the professional English translation of your 3x650 cross cutting line product details:
3x650 Cross Cutting Line Product Details
Product Overview The 3x650 cross cutting line is a high-efficiency, precision metal sheet transverse cutting equipment specifically designed for 650mm width coils. It is suitable for cutting various materials including cold rolled steel, stainless steel, galvanized sheets, and aluminum plates with thickness ranges from 0.3mm to 3.0mm.
Technical Specifications Item Specification Maximum Working Width 650mm Material Thickness Range 0.3mm~3.0mm Cutting Length Range 300mm~3000mm (customizable) Cutting Accuracy ±0.1mm Cutting Speed 30~60 cuts/minute (depending on material and length) Feeding System Servo-driven, high precision roller feeding Control System PLC/CNC (touchscreen operation with data storage) Cutting Tool Configuration Alloy steel circular blades or hydraulic shear blades (optional) Power Requirement 380V/50Hz (three-phase) Equipment Power 15kW~25kW (depending on configuration)
Key Advantages ✅ High Efficiency Production
Servo feeding + high-speed shearing achieves up to 60 cuts per minute, ideal for large volume orders.
High precision encoder + closed-loop control ensures ±0.1mm cutting tolerance.
✅ Multi-functionality
Supports fixed-length cutting, skip cutting, and remnant optimization for different materials (steel, aluminum, etc.).
✅ Automation Integration
Optional automatic stacking machine or decoiler connection for complete automation.
✅ Enhanced Durability
Critical components (guide rails, cutting tools) use imported brands, increasing service life by over 50%.
Main Components
Decoiler (optional) - Automatic feeding with edge alignment function
Feeding mechanism - Servo motor driven for precise material feeding
Cross cutting unit - Hydraulic or mechanical shearing for stable operation
Stacking table - Automatic counting and layering for neat material collection
Electrical control system - Touchscreen operation with parameter storage and fault alarm
Applications
Sheet metal fabrication: Electrical cabinet, ventilation duct plate cutting
Automotive components: Vehicle body panels, battery casing material cutting
Hardware products: Metal packaging, bracket sizing and cutting
New energy: Photovoltaic support, lithium battery structural component processing
Note: All technical parameters subject to final configuration confirmation. Contact us for customized solutions based on your specific material requirements and production needs.
