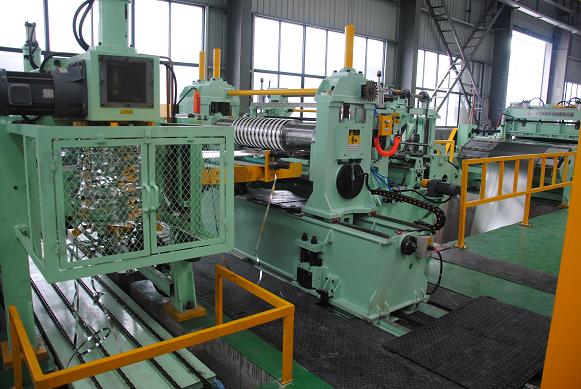

Slitting and Rewinding Machine
Slitting and Rewinding Line is widely used in industries such as metal, plastic, and paper processing, with its core advantages reflected in the following aspects:
High Efficiency
Utilizes high-speed slitting and rewinding technology to significantly improve processing efficiency.
Automated control (e.g., PLC, servo systems) reduces manual intervention and increases production capacity.
Precision Slitting
Precision circular knives or rotary shear technology ensure clean-cut edges with no burrs.
Laser/hydraulic edge guiding system guarantees strip width consistency (±0.1mm).
Stable Tension Control
Closed-loop tension control system prevents material stretching deformation or loose winding.
Suitable for ultra-thin materials (e.g., foils) and thick plates (e.g., stainless steel coils) for stable winding.
Versatility
Capable of processing various materials, including metal (steel, aluminum, copper), plastic films, paper, and composites.
Modular design supports diverse width (e.g., 100-2000mm) and thickness (0.01-6mm) processing requirements.
Automation & Intelligence
Automatic roll change, online monitoring (e.g., defect detection, length counting) minimizes downtime.
HMI (Human-Machine Interface) for easy operation, adjustable parameters, and data logging/analysis.
Energy Saving & Eco-Friendly
Low-energy consumption drive systems (e.g., frequency conversion motors) reduce operating costs.
Waste recycling devices minimize material waste, complying with green production standards.
High Reliability
Heavy-duty structural design ensures long-term stable operation.
Critical components (e.g., blades, bearings) use wear-resistant materials for extended service life.
Applications:
Metal Processing: Slitting stainless steel, aluminum alloy, and copper strips.
Packaging Materials: Rewinding films, paper, and non-woven fabrics.
New Energy: Slitting lithium battery electrodes and photovoltaic backsheets.
These advantages make the slitting and rewinding line an efficient, precise, and low-waste processing solution, ideal for modern smart manufacturing needs.
Here's the refined English translation of your product details:
Slitting and Rewinding Line Product Details
Overview The slitting and rewinding line represents high-efficiency, precision industrial processing equipment designed for longitudinal slitting and rewinding of coiled materials including metals (stainless steel, aluminum, copper), plastic films, paper, and composite materials. This integrated system combines uncoiling, slitting, tension control, and rewinding functions, making it ideal for metal processing, packaging, and new energy applications.
Technical Specifications Parameter Specification Range Material Width 100-2000 mm (Customizable) Material Thickness 0.01-6 mm (Metal/Non-metal) Slitting Accuracy ±0.1 mm Max Uncoil Diameter 1500-2500 mm Max Rewind Diameter 800-1500 mm Line Speed 10-300 m/min (Variable frequency control) Tension Control Closed-loop automatic control Power Supply 3-phase 380V/50Hz (Customizable)
Core Configurations
Uncoiling System
Hydraulic loading trolley
Auto-centering device
Magnetic powder/pneumatic brake
Slitting System
Precision circular knives/rotary shear blades
Hydraulic/pneumatic blade adjustment
On-line scrap edge separation
Tension Control System
Multi-section closed-loop tension control
Floating roller edge guiding
Rewinding System
Dual-position automatic roll change
Air shaft rewinding
Surface/center winding options
Electrical Control System
PLC control
HMI touchscreen interface
Frequency conversion drive
Optional Features
Laser thickness measurement system
Automatic labeling system
Dust removal unit
Remote monitoring system
Applications
Metal processing: Precision slitting of stainless steel, aluminum, copper coils
Packaging: BOPP/PET films, paper rewinding
New energy: Lithium battery electrode, photovoltaic backsheet processing
Specialty materials: Carbon fiber, non-woven fabric slitting
Certifications
CE Certification
ISO9001 Quality Management System
EN ISO 13849 Machinery Safety Standards
Service Support
Free technical consultation
Installation & commissioning
Operator training
Global spare parts supply
For detailed specifications or customized solutions, please contact our sales engineers.
