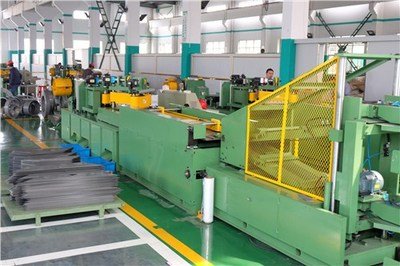

Steel Coil Cut-to-Length Line
Here's a polished English version of your steel coil cut-to-length line advantages:
Steel Coil Cut-to-Length Line - Product Advantages
High Precision Cutting
Features advanced servo-driven systems ensuring exceptional length accuracy (±0.5mm or tighter tolerance)
Delivers clean, burr-free cuts for superior edge quality
High Efficiency & Productivity
Fully automated process from feeding to stacking minimizes labor requirements
High-speed operation maximizes throughput while maintaining precision
Wide Material Compatibility
Cold-rolled/Hot-rolled steel
Galvanized steel
Stainless steel
Pre-painted coils
Processes diverse steel grades including:
Adjustable for various thicknesses (typically 0.3-6.0mm)
Optimized Material Utilization
Intelligent nesting software minimizes scrap
Continuous operation capability reduces head/tail waste
Intuitive Operation
Pre-set cutting programs
Real-time monitoring
Fault diagnostics
User-friendly touchscreen interface with:
Quick-change tooling for fast job transitions
Robust Construction
Heavy-duty frame design withstands continuous operation
Premium wear components extend service intervals
Easy-access maintenance points reduce downtime
Comprehensive Safety
Full perimeter guarding with light curtains
Emergency stop circuits with redundancy
Complies with CE, ISO, and OSHA standards
Flexible Output Options
Palletized bundles
Conveyor sorting
Robotic handling systems
Customizable stacking configurations:
Optional marking/labeling integration
Typical Applications:
Automotive component manufacturing
Building and construction materials
Appliance production
HVAC components
Steel Coil Cut-to-Length Line - Product Specifications
Overview The cut-to-length line is an automated production system designed to uncoil, level, cut steel coils (including cold-rolled, hot-rolled, galvanized, and stainless steel) into precise lengths, and stack them into sheets of required specifications.
Key Components | Component | Function Description | |----------------------|----------------------| | Uncoiler | Automatically unwinds steel coils, supports hydraulic expansion or mechanical mandrel, with optional dual-head uncoiling for continuous production | | Leveler | Multi-roller precision leveling eliminates material internal stress and ensures flatness (5-23 roller configuration available) | | Feeder | Servo-driven with high-precision feed speed control, achieving ±0.3mm positioning accuracy with encoder | | Shear | Hydraulic/mechanical high-speed cutting with blade life ≥2 million cuts (flying shear or stop shear mode optional) | | Stacker | Automatic sorting and stacking, supports cross-stacking or edge-aligned stacking (robotic or belt conveyor type available) | | Control System (PLC+HMI) | Siemens/Mitsubishi PLC with touchscreen HMI, supports recipe storage, fault diagnosis and remote monitoring |
Technical Parameters | Parameter | Specification Range | |----------------------|---------------------| | Material thickness | 0.3-6.0mm | | Material width | 600-2200mm (customizable) | | Cutting length | 500-6000mm (adjustable) | | Cutting accuracy | ±0.3mm | | Production speed | 10-60 cuts/minute (depending on material thickness) | | Power requirement | 50-150kW (configuration dependent) |
4.Optional Features
Laser length measurement system: improves cutting accuracy to ±0.1mm
Automatic blade changer: reduces downtime and improves efficiency
Scrap edge winder: automatically collects cutting waste
Electrostatic oiler: surface treatment before cutting
Automatic labeler: prints labels for finished sheets
Industry Applications
Automotive manufacturing: body panels, chassis components
Home appliance industry: refrigerator/AC shells, metal panels
Construction: color steel plates, curtain wall materials
Hardware processing: filing cabinets, metal furniture
Steel Coil Cut-to-Length LineService & Support
Free technical consultation and solution design
Global engineer installation and commissioning
24-month warranty with lifetime maintenance
Operation training and spare parts supply
Steel Coil Cut-to-Length Line For specific model parameters or customized solutions? Please contact our sales team!
Note: The above parameters are based on standard configurations and may be adjusted according to customer requirements.
