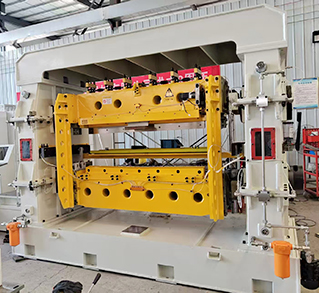

Flying Shear
Flying Shear Product Advantages
1. High-Precision Cutting
Dynamic Tracking Cutting: Synchronizes with the production line to achieve precise cutting during high-speed movement, with an error margin within ±0.5mm.
Intelligent Positioning: Real-time feedback from encoders or laser distance measurement ensures smooth cuts and minimizes material waste.
2. High-Efficiency Production
Continuous Operation: Cutting can be performed without stopping the production line, significantly improving efficiency (e.g., steel rolling lines can reach speeds of 20m/s or higher).
Rapid Response: Servo-driven or hydraulic systems complete shearing actions in milliseconds, meeting high-frequency production demands.
3. Strong Flexibility
Multi-Specification Adaptability: Adjust cutting length and angles (e.g., right angle, bevel, arc) via programming, eliminating the need for mold changes.
Wide Material Compatibility: Suitable for steel plates, rods, pipes, copper, aluminum, and even complex cross-section profiles (e.g., H-beams).
4. Energy Saving & Reduced Waste
Low-Inertia Design: Optimized mechanical structure reduces kinetic energy loss, saving 30%+ energy compared to traditional shears.
Waste Control: Precise cutting minimizes burrs, improving material yield (e.g., 99.2% yield for silicon steel sheets).
5. Smart Integration
Automated Coordination: Interfaces with PLC & MES systems for automatic length measurement, counting, and fault diagnosis.
Parameter Memory: Stores multiple process configurations for quick switching between production needs.
6. Durability & Low Maintenance
High-Strength Materials: Blades use tungsten carbide or ceramic coatings, extending lifespan by 3-5 times.
Modular Design: Key components (e.g., bearings, hydraulic valves) allow quick replacement, reducing downtime by 70%.
Industry Application Cases
Steel Industry: Hot-rolled strip flying shears achieve ±0.3mm precision, becoming standard in million-ton annual production lines.
Comparison with Traditional Shearing Equipment
| Metric | Flying Shear | Traditional Fixed Shear |
|---|---|---|
| Cutting Speed | 10-30m/s | Requires stopping |
| Material Yield | ≥99% | 95%-98% |
| Manual Input | Fully automated | Manual positioning needed |
User Benefits from Flying Shear Technology
Reduces production costs by ~15%
Increases productivity by 20%-40%
Ideal for high-volume, high-precision continuous production
With the rise of Industry 4.0, its smart manufacturing potential will further expand.
Flying Shear Product Details
1. Product Overview
A flying shear is an advanced industrial cutting machine designed for high-speed, continuous shearing of metal strips, bars, pipes, and profiles in motion. It is widely used in steel rolling mills, non-ferrous metal processing, paper manufacturing, and battery electrode production due to its precision, efficiency, and automation capabilities.
2. Key Features & Specifications
| Category | Technical Specifications |
|---|---|
| Cutting Accuracy | ±0.1mm ~ ±0.5mm (laser-guided models) |
| Max. Cutting Speed | 30m/s (steel), 15m/s (non-ferrous metals) |
| Material Thickness | 0.1mm ~ 25mm (adjustable) |
| Cutting Angle Range | 0°~ 90° (programmable) |
| Drive System | Servo motor / Hydraulic / Hybrid |
| Control System | PLC + HMI (touchscreen interface) |
| Blade Material | Tungsten carbide / Ceramic-coated |
| Power Consumption | 20%~30% lower than conventional shears |
3. Working Principle
Synchronization: Tracks moving material via encoder feedback, matching line speed.
Cutting Phase: Blades accelerate to material speed → shear → decelerate for next cycle.
Smart Adjustment: Auto-detects material variations (thickness/width) for real-time parameter optimization.
4. Structural Components
Frame: Reinforced welded steel with vibration-damping design.
Blade Assembly: Quick-change cartridge system (replacement in <15 mins).
Transmission: Precision gearbox + helical gears (noise <75dB).
Sensors: Laser positioning + infrared temperature monitoring.
5. Customization Options
Cutting Shapes: Straight, fish-tail, trapezoidal, etc.
Automation Upgrades: Robotic scrap removal, AI-based predictive maintenance.
Material-Specific Kits: Copper/brass non-stick coatings, soft-material vacuum hold-downs.
6. Industry Applications
| Sector | Use Case Examples |
|---|---|
| Steel Rolling | Hot/cold strip head-tail cropping, slit coil dividing |
| Automotive | Wheel rim blanking, chassis component cutting |
| Energy | Solar panel frame trimming, battery electrode slitting |
| Construction | Rebar flying shear with automatic bundling |
7. Operational Benefits
Productivity: Processes 500~1200 cuts/minute in thin-gauge applications.
Quality: Burr-free edges meet ISO 9013 Class 2 standards.
Safety: Light curtains + emergency stop dual-circuit protection.
8. Maintenance & Service
Preventive Care: Self-lubricating bearings, 10,000-hour MTBF (mean time between failures).
Remote Support: IoT-enabled condition monitoring with real-time alerts.
9. Why Choose Our Flying Shear?
✅ 10+ Years OEM experience in metal processing equipment
✅ CE/ISO 9001 certified with 24-month warranty
✅ Turnkey solutions – from installation to operator training
Request a Quote Today!
Attachments: Product CAD drawings, performance test reports, case study videos available upon request.
Note: Specifications may vary by model. Consult our engineers for material-specific configurations.
Shipment Actual Photos
