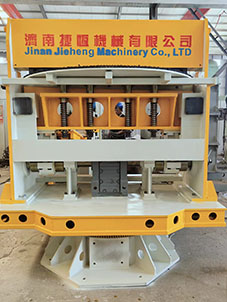

Oscillating Shear

High-Precision Cutting (High Cutting Precision)
Utilizing an oscillating blade system, it ensures burr-free cutting edges with dimensional accuracy up to ±0.1mm.
Ideal for high-precision metal sheets and composite materials, supporting both straight and curved cuts.

Energy Efficiency & High Productivity
Reduces energy consumption by 30%-50% compared to traditional shearing machines while increasing cutting speed by 20%-40%.
The servo drive system optimizes power output, minimizing idle losses.

Versatile Material Compatibility
Capable of cutting various materials, including metals (steel, aluminum, copper), plastics, rubber, and composites.
Features an adjustable blade gap to accommodate different material thicknesses (0.5mm-20mm).

Low Vibration & Low Noise
With dynamic balance optimization, operational noise is kept below 75dB, minimizing workshop disturbances.
Suitable for precision machining and medical device manufacturing where vibration sensitivity is critical.

Automation Integration
Compatible with PLC/CNC control systems, supporting auto-feeding and smart sorting for 24/7 unmanned production.
Optional robotic loading/unloading further enhances production line efficiency.

Low Maintenance
Modular design allows for quick blade replacement, reducing downtime.
The self-lubricating system extends the lifespan of critical components, increasing maintenance intervals by 50%.

Safety & Reliability
Complies with CE/ISO 12100 safety standards, equipped with an emergency stop, safety guard, and light curtain.
Features smart fault detection for real-time equipment monitoring.

Compact & Space-Saving Design
Occupies 30% less space than traditional shearing machines, making it ideal for small workshops or automated production lines.

Industry Applications

Metal Fabrication: Automotive parts, sheet metal components, hardware manufacturing
Electronics: PCB substrates, heat sink cutting
Packaging: Plastic/composite material trimming
Aerospace: High-precision composite material processing

Why Choose Our Swing Shear?

✅ Custom solutions tailored to optimize cutting parameters for your specific needs.
✅ Global after-sales support, including remote diagnostics and fast spare parts delivery.

For detailed technical specifications or industry case studies, contact us today!

Contact Now E-Mail Telephone

Product Details

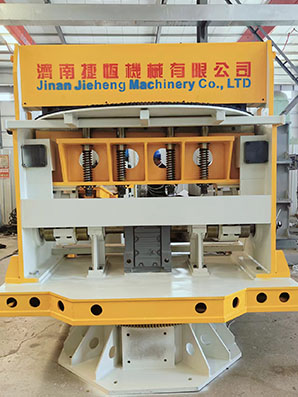

Swing Shear Product Details

(Swing Shear/Oscillating Shear Product Specifications)

1. Technical Specifications

Item	Specifications
Model	SS-300 / SS-500 / SS-800 (Customizable)
Max Cutting Thickness	Carbon Steel: 0.5-20mm (Model dependent)
Cutting Accuracy	±0.1mm (Material dependent)
Oscillation Frequency	30-120 times/min (Adjustable)
Drive System	Servo Motor (Japanese/German brands optional)
Control System	PLC/CNC (Supports custom programming)
Noise Level	<75dB
Power Supply	380V/50Hz (220V or other voltages customizable)
Weight	1500-5000kg (Model dependent)
Dimensions	1500×800×1200mm (Standard model)

2. Core Features

✅ Precision Guide Rail System - German imported linear guides ensure long-term precision
✅ Intelligent Lubrication System - Automatic timed lubrication extends service life
✅ HMI Interface - 7-inch color touchscreen with multi-language support
✅ Quick Die Change System - Die replacement in <5 minutes
✅ Safety Protection - CE compliant with two-hand operation buttons and safety light curtains

3. Optional Accessories

Auto Feeding System
Scrap Conveyor
Vision Inspection System
Robot Integration Interface
Oil Mist Collector

4. Applicable Materials

✔ Metal Sheets: Stainless steel, carbon steel, aluminum, copper
✔ Composites: Fiberglass, carbon fiber
✔ Plastic Sheets: ABS, PC, PVC
✔ Special Materials: Rubber sheets, insulating materials
