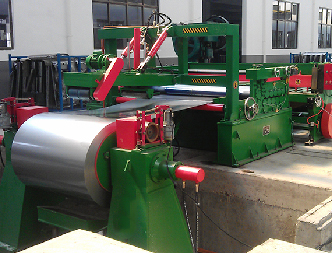

Horizontal cutting line
Advantages of Steel Processing Equipment – Cross-Cutting Line
In the steel processing industry, the cross-cutting line is an essential piece of equipment widely used for cutting materials such as steel plates, strips, and stainless steel. With its characteristics of high efficiency, precision, and advanced automation, the cross-cutting line has become an indispensable tool in modern steel processing. Below are the key advantages of the cross-cutting line:
1. High Efficiency
The cross-cutting line utilizes an automated control system, enabling continuous, high-speed cutting operations, which significantly enhances production efficiency. Compared to traditional manual or semi-automatic cutting equipment, the cross-cutting line can complete large-volume cutting tasks in a short time, reducing labor intensity and manual operation time.
2. High Precision
Equipped with precise measurement and control systems, the cross-cutting line ensures accurate cutting dimensions. Through CNC (Computer Numerical Control) technology, the cross-cutting line achieves cutting precision at the millimeter level or even higher, meeting the stringent size requirements of different customers. This high precision not only reduces material waste but also improves product quality.
3. High Level of Automation
Modern cross-cutting lines are typically equipped with PLCs (Programmable Logic Controllers) and touchscreen interfaces, making operation simple and highly automated. Operators only need to input relevant parameters, and the equipment can automatically complete processes such as feeding, positioning, cutting, and stacking, minimizing human intervention and reducing the risk of operational errors.
4. Multifunctionality
The cross-cutting line is not limited to straight cutting; it can also perform various cutting methods, such as fixed-length cutting and strip cutting, based on requirements. Additionally, it can handle steel materials of different thicknesses, widths, and types, offering wide applicability to meet diverse processing needs.
5. Material Savings
By optimizing cutting paths and precisely controlling cutting dimensions, the cross-cutting line minimizes waste generation. This reduces material costs and improves material utilization, particularly when processing high-value steel, where its material-saving advantages are especially prominent.
6. Operational Safety
The cross-cutting line is designed with operator safety in mind, incorporating multiple safety protection devices such as emergency stop buttons, protective covers, and photoelectric sensors. These features effectively prevent potential accidents during operation, ensuring the safety of personnel.
7. Easy Maintenance
Modern cross-cutting lines feature a modular design, making daily maintenance and servicing more convenient. Wearable parts can be easily replaced, and most cross-cutting lines come with self-diagnostic functions, allowing for timely issue detection and resolution, reducing equipment downtime, and ensuring continuous production.
8. Environmental and Energy Efficiency
The cross-cutting line operates with low noise and energy consumption, aligning with modern industrial environmental standards. Additionally, its automated control system adjusts energy usage based on actual production needs, further reducing energy consumption and promoting green manufacturing.
Conclusion
The steel processing equipment cross-cutting line, with its advantages of high efficiency, precision, and advanced automation, has become a crucial tool in the modern steel processing industry. It not only enhances production efficiency and reduces costs but also improves product quality and safety. As technology continues to advance, the cross-cutting line will play an even more significant role in the future of steel processing, driving the industry toward smarter and greener development.
Product Details of Cross-Cutting Line
The cross-cutting line is a high-efficiency equipment used for steel processing, primarily for cutting materials such as steel plates, strips, and stainless steel into specified lengths or strips. Below is a detailed introduction to the cross-cutting line product:
I. Product Overview
The cross-cutting line is a highly automated steel processing equipment widely used in industries such as construction, home appliances, automotive, and packaging. Through a series of processes including uncoiling, leveling, feeding, cutting, and stacking, it processes coils or sheets into finished products of the required dimensions. It features high efficiency, precision, and multifunctionality.
II. Product Components
Function: Unrolls the coil to provide a continuous supply of material.
Features: Equipped with an expanding mandrel to accommodate coils of different inner diameters.
Function: Levels the material to eliminate bends and deformations.
Features: Uses a multi-roller leveling structure for effective leveling.
Feeding Device
Function: Feeds the material smoothly and accurately into the cutting area.
Features: Equipped with servo or frequency-conversion motors for high-precision feeding.
Function: Performs fixed-length cutting of the material.
Features: Uses hydraulic or mechanical cutting methods for fast and precise cutting.
Stacking Device
Function: Automatically stacks the cut products.
Features: Equipped with a sorting device for stacking products of different specifications.
Control System
Function: Enables automated control, supporting parameter setting, fault diagnosis, and data recording.
Features: Uses PLC (Programmable Logic Controller) and touchscreen interface.
Auxiliary Equipment
Includes scrap collection devices, lubrication systems, safety protection devices, etc.
III. Product Features
High Efficiency
Automated operation, continuous production, and fast cutting speed, suitable for large-volume processing.
High Precision
Uses CNC technology to achieve cutting precision of ±0.1mm, meeting high processing standards.
Multifunctionality
Supports various processing methods such as fixed-length cutting and strip cutting, adapting to different process requirements.
Easy Operation
Touchscreen interface for simple parameter setting, easy for operators to master.
Safety and Reliability
Equipped with multiple safety protection devices, such as emergency stop buttons, protective covers, and photoelectric sensors.
Energy Efficiency and Environmental Protection
Low noise, low energy consumption design, meeting green production standards.
IV. Technical Parameters
| Item | Parameter Range |
|---|---|
| Material Thickness | 0.2mm - 6.0mm |
| Material Width | 600mm - 2000mm |
| Cutting Length Range | 500mm - 6000mm |
| Cutting Precision | ±0.1mm - ±0.5mm |
| Cutting Speed | 10 - 30 cuts/minute |
| Equipment Power | 20kW - 100kW |
| Control System | PLC + Touchscreen |
| Stacking Height | 500mm - 1500mm |
V. Application Fields
Construction Industry
Used for cutting steel plates and color-coated plates for construction.
Home Appliance Manufacturing
Used for fixed-length cutting of steel plates for appliance casings.
Automotive Manufacturing
Processes steel plates for car bodies and components.
Packaging Industry
Cuts metal materials for packaging.
Other Industries
Suitable for processing materials such as stainless steel and aluminum alloys.
VI. Product Advantages
Improved Production Efficiency
Automated operation reduces manual intervention, increasing production speed.
Reduced Material Waste
High-precision cutting minimizes waste, improving material utilization.
Strong Adaptability
Can handle steel materials of various thicknesses, widths, and types.
Easy Maintenance
Modular design allows for easy replacement of wear parts, reducing maintenance costs.
Energy Efficiency and Environmental Protection
Low energy consumption and noise levels comply with environmental standards.
VII. Selection Recommendations
Based on Material Characteristics
Different materials (e.g., stainless steel, carbon steel) require equipment with different cutting forces.
Based on Processing Needs
Different processes such as fixed-length cutting or strip cutting determine equipment configuration.
Based on Production Capacity Requirements
High-capacity needs may require faster, more automated equipment.
Consider After-Sales Service
Choose manufacturers with comprehensive after-sales services to ensure long-term stable operation.
VIII. Maintenance and Care
Regular Lubrication
Lubricate moving parts regularly to reduce wear.
Inspect Wear Parts
Regularly inspect and replace wear parts such as blades and bearings.
Clean the Equipment
Keep the equipment clean to prevent impurities from affecting operation.
Regular Calibration
Calibrate measurement and control systems periodically to ensure precision.
Conclusion
As a highly efficient, precise, and multifunctional steel processing equipment, the cross-cutting line is widely used across various industries. Through proper selection, correct usage, and regular maintenance, the cross-cutting line can provide enterprises with long-term, stable, and efficient production support, helping to enhance competitiveness and economic benefits.
