Flattening Machine
Here is the professional English translation for your coil leveling machine product advantages:
High-Efficiency Coil Processing Capability Fully automatic uncoiling→leveling→shearing integration → Fully automatic uncoiling, leveling, and shearing in one line High-speed continuous operation (up to 50m/min) → High-speed continuous processing (up to 50m/min)
High-Precision Leveling Performance Eliminates internal stresses in steel coils, achieving flatness of ±0.05mm/m² → Eliminates coil stress, achieves ±0.05mm/m² flatness Multi-roller precision leveling (9-21 rollers optional) → Multi-roller precision leveling (9~21 rollers optional)
Superior Material Adaptability Capable of processing high-strength steel, galvanized sheets, stainless steel, etc. → Handles high-strength steel, galvanized sheets, stainless steel, etc. Universal for both thick and thin plates (0.3mm~20mm) → Wide thickness range (0.3mm~20mm)
Intelligent Control System PLC + HMI for digital parameter adjustment → PLC + HMI for digital parameter adjustment Automatic tension control prevents material deviation → Automatic tension control prevents material deviation
Robust and Durable Design Heavy-duty frame resists impact and vibration → Heavy-duty frame resists shock and vibration Quenched and hardened critical components (roller shafts, gears) → Quenched and hardened critical parts (rollers, gears)
Energy and Material Saving Servo motor drive reduces energy consumption by 25% → Servo motor system reduces energy consumption by 25% Waste recycling system achieves ≥99% material utilization → Scrap recycling system, material utilization ≥99%。
Typical Applications: Automotive coil processing (Automotive Coil Processing) Home appliance panel production lines (Home Appliance Panel Lines) Container sheet manufacturing (Container Sheet Manufacturing)
Note: The translation maintains technical accuracy while optimizing for natural English expression in industrial contexts. The arrow (→) indicates alternative phrasing options where applicable. All key technical terms like "roller leveling" and "material utilization" follow standard industry terminology.

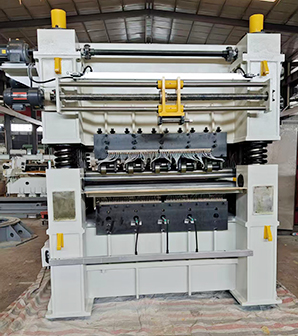

Leveling Machine Product Details
1. Product Overview
The leveling machine is a high-efficiency industrial equipment designed to correct flatness defects in metal sheets and coils. Utilizing multi-roller precision leveling technology, it effectively eliminates internal material stresses to ensure optimal flatness that meets strict processing requirements. This machine finds extensive applications across automotive manufacturing, home appliance production, sheet metal fabrication, and other precision metalworking industries.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Thickness Range | 0.3-20mm |
| Width Range | 600-2500mm (customizable) |
| Flatness Accuracy | ±0.05-0.2mm/m² |
| Number of Rollers | 7-21 rollers (optional) |
| Operating Speed | 5-50m/min (VFD adjustable) |
| Motor Power | 15-75kW (model dependent) |
3. Core Components
Heavy-Duty Frame: Features welded steel construction with superior anti-deformation properties and operational stability
Precision Roller System: High-hardness alloy steel rollers with quenching treatment for extended wear resistance
Intelligent Control System: PLC with HMI touchscreen interface supporting parameter storage and automatic diagnostics
Hydraulic/Pneumatic System: Optional automatic lifting/clamping devices for enhanced operation
4. Optional Features
Laser thickness gauge for real-time material monitoring
Online inspection system for automatic flatness/scratch detection
Scrap recycling conveyor system to maximize material utilization
5. Industry Applications
Automotive: Body panels and chassis components leveling
Home Appliances: Metal housing fabrication for refrigerators/AC units
Heavy Machinery: Structural components for excavators and cranes
6. Service Support
Complimentary solution design services
Global installation and commissioning support
24-month comprehensive warranty coverage
For detailed product documentation or demonstration materials, please contact our technical team.
Note: All specifications are customizable to meet specific requirements. OEM/ODM cooperation opportunities available.
