Leveling Machine
1. Product Overview

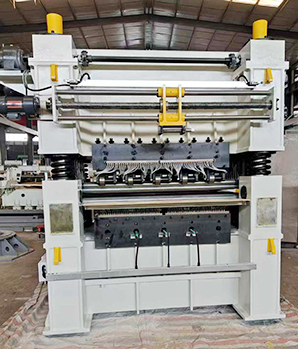

The leveling machine is a high-efficiency industrial equipment designed to correct flatness defects in metal sheets and coils. Utilizing multi-roller precision leveling technology, it effectively eliminates internal material stresses to ensure optimal flatness that meets strict processing requirements. This machine finds extensive applications across automotive manufacturing, home appliance production, sheet metal fabrication, and other precision metalworking industries.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Thickness Range | 0.3-20mm |
| Width Range | 600-2500mm (customizable) |
| Flatness Accuracy | ±0.05-0.2mm/m² |
| Number of Rollers | 7-21 rollers (optional) |
| Operating Speed | 5-50m/min (VFD adjustable) |
| Motor Power | 15-75kW (model dependent) |
3. Core Components
Heavy-Duty Frame: Features welded steel construction with superior anti-deformation properties and operational stability
Precision Roller System: High-hardness alloy steel rollers with quenching treatment for extended wear resistance
Intelligent Control System: PLC with HMI touchscreen interface supporting parameter storage and automatic diagnostics
Hydraulic/Pneumatic System: Optional automatic lifting/clamping devices for enhanced operation
4. Optional Features
Laser thickness gauge for real-time material monitoring
Online inspection system for automatic flatness/scratch detection
Scrap recycling conveyor system to maximize material utilization
5. Industry Applications
Automotive: Body panels and chassis components leveling
Home Appliances: Metal housing fabrication for refrigerators/AC units
Heavy Machinery: Structural components for excavators and cranes
6. Service Support
Complimentary solution design services
Global installation and commissioning support
24-month comprehensive warranty coverage
For detailed product documentation or demonstration materials, please contact our technical team.
Note: All specifications are customizable to meet specific requirements. OEM/ODM cooperation opportunities available.
