Precision Slitting Processing of Metal Coils

2025/10/12 08:23

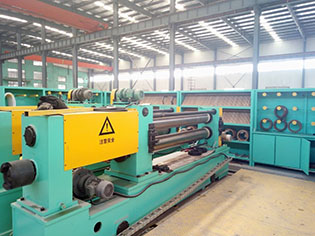

Steel Coil Slitting Machine Product Details

1. Equipment Overview

The Steel Coil Slitting Machine is a professional industrial equipment designed for longitudinally slitting metal coils (e.g., hot-rolled steel, cold-rolled steel, stainless steel) into multiple narrow strips. Widely used in steel processing, automotive manufacturing, and home appliance production, it ensures precise dimensions and smooth edges with high-precision blades and automated control systems.

2. Key Technical Specifications

Parameter	Range	Remarks
Material	HR/CR steel, stainless steel, galvanized sheet, silicon steel, etc.	Custom materials available
Thickness	0.3–10mm	Up to 20mm (heavy-duty models)
Coil Width	600–2500mm	Max. 3000mm (extra-wide)
Strip Width	20–1000mm (per strip)	Adjustable via blade count
Slitting Accuracy	±0.05–0.1mm	±0.02mm (high-precision)
Speed	20–200 m/min	Material-dependent
Max. Coil Weight	10–30 tons	50 tons (heavy-duty)
Blade Type	Tungsten carbide/circular knives	Ceramic-coated optional

3. Core Components

Uncoiling System

Hydraulic loading car
Automatic centering unit

Slitting System

Heavy-duty frame
Hydraulic knife shaft (adjustable)
Multi-blade configuration (up to 12 blades)

Rewinding System

Dual-mandrel rewinder
Pneumatic shaft winding

Control System

PLC + HMI (Siemens/Mitsubishi)
Closed-loop tension control (PID)

4. Competitive Advantages

✔ Precision Cutting: Laser measurement + servo edge guiding for burr-free strips.
✔ High Efficiency: Continuous slitting, blade change time ≤5 minutes.
✔ Smart Operation: Fault self-diagnosis + production data tracking.
✔ Energy Saving: Inverter motors reduce power consumption by 30%.
